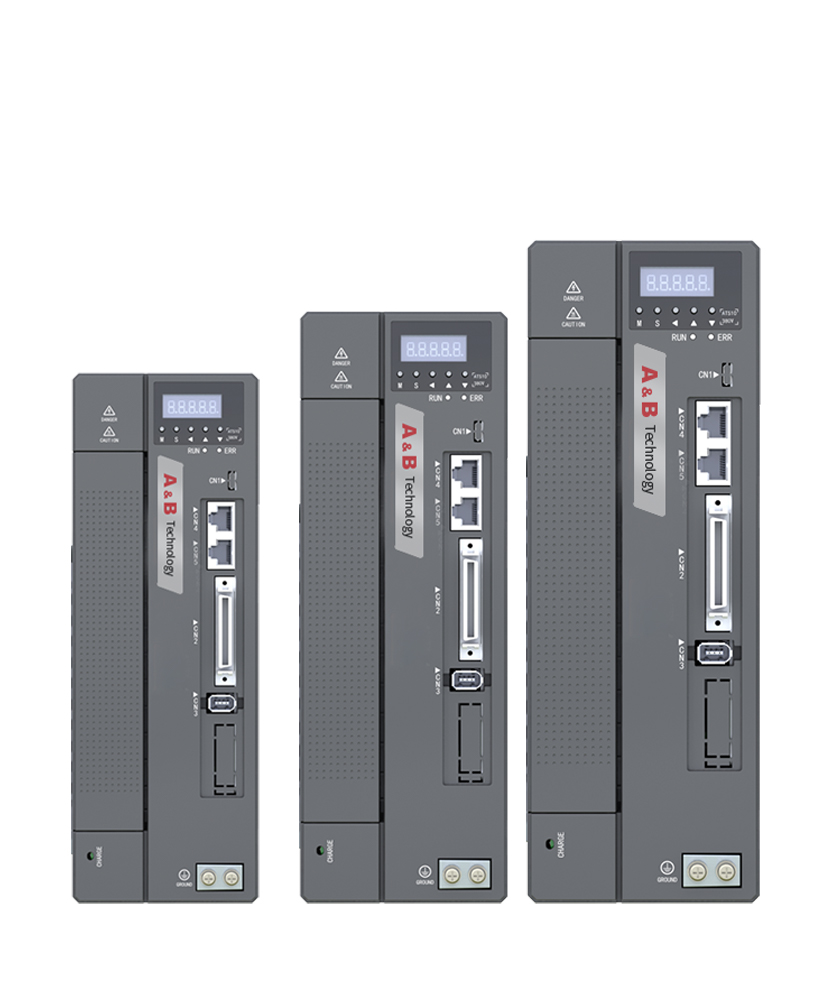

AC Servo Drive

The model numbers are: ABS10 , ABS12 , ABS20

Our power options are: 0.4KW 0.75KW,1KW,3KW,7.5KW...

DESCRIPTION
DOCUMENT

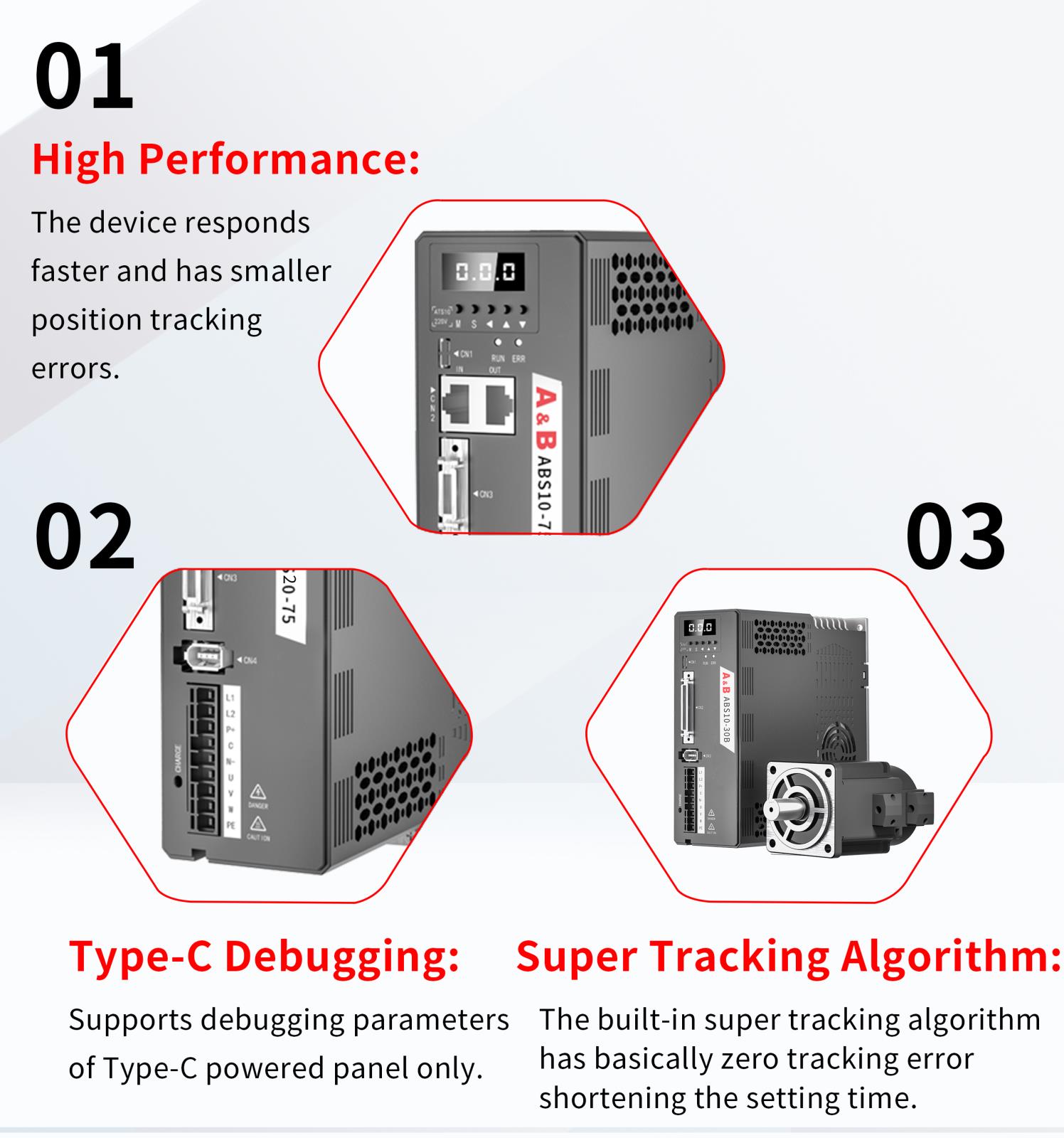

Performance characteristics:

  1. Supports multiple communication methods such as Modbus, EtherCAT, CANopen, etc.

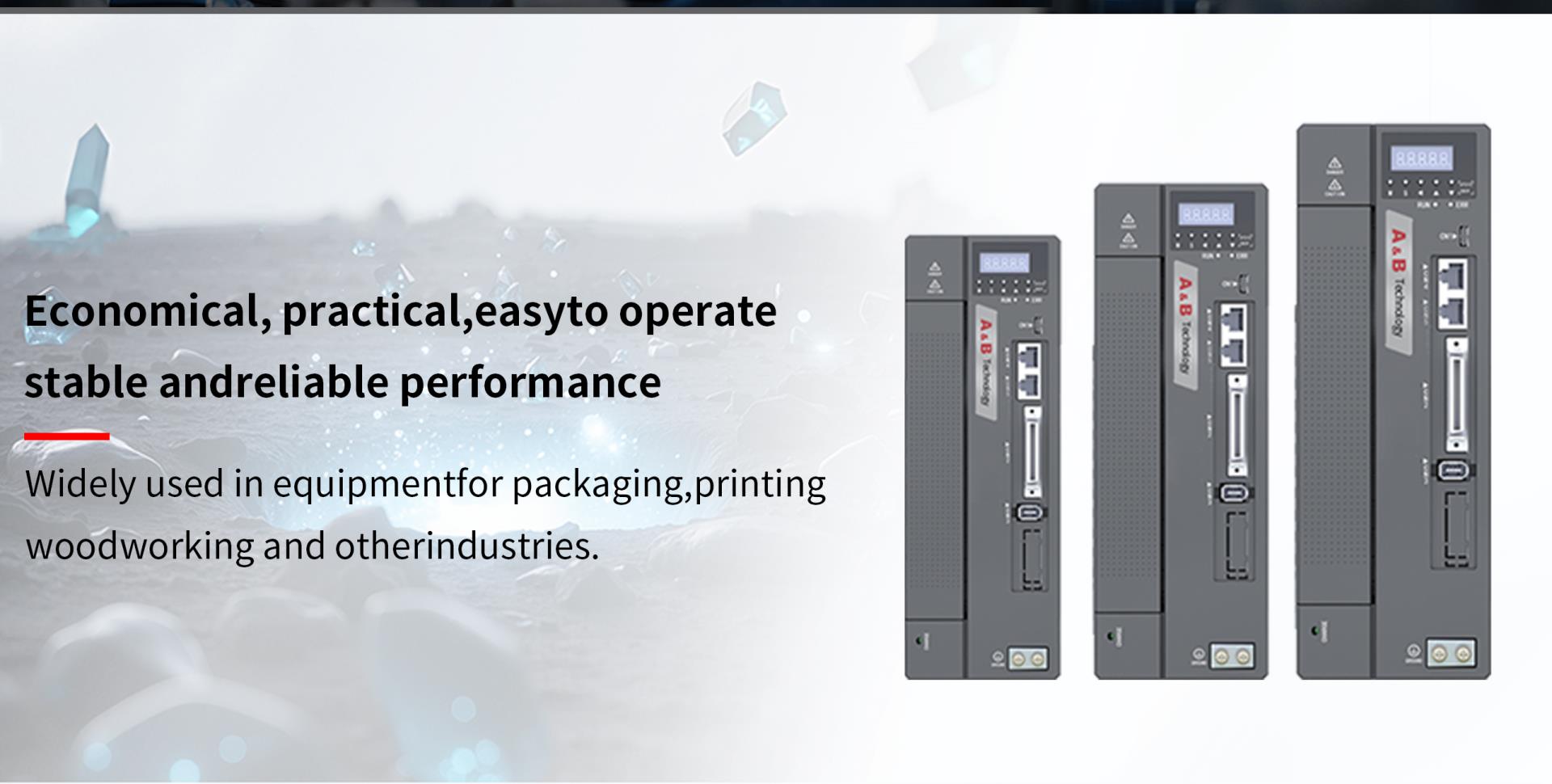

  2. Economical, practical, easy to operate, stable and reliable in performance.

  3. soleuaosuoleoldde40 1loleu jsenay+jaaw ue) y)l4M'zHysaцpea, yipim pueg paads ay.

  4. Positioningtime within 3.5ms, positioningaccuracy ± 1 pulse.

  5. The workingtemperature rangeis wide, which can reach -10°C~+50°C.

  6. Vibration and jittersuppression, automatic gain adjustment, and more stable operation.

  7. uoneanoluo) pezluago eAeluve oi siele weieo weisAslo juewnsnipe pue uollubone, hewoine yonoung anngepe peo


AC Servo Drive

















                  Positioningtimewithin3.5ms,positioning accuracy ± 1 pulse.


                   Power range: 0.1 kW - 3 kW...


                   Supports multiple communication methods such as Modbus, EtherCAT, CANopen, etc

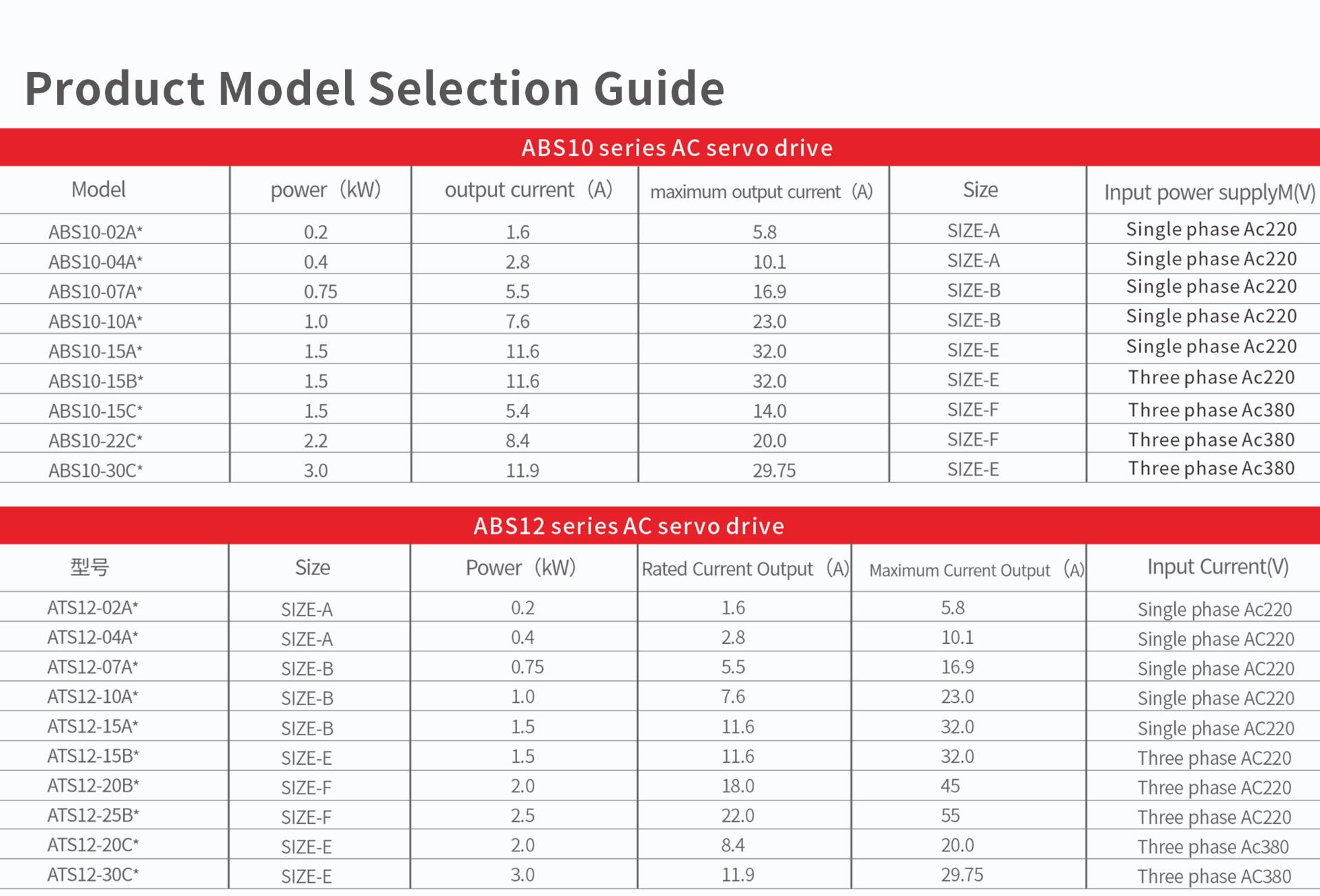

AC servo drive models

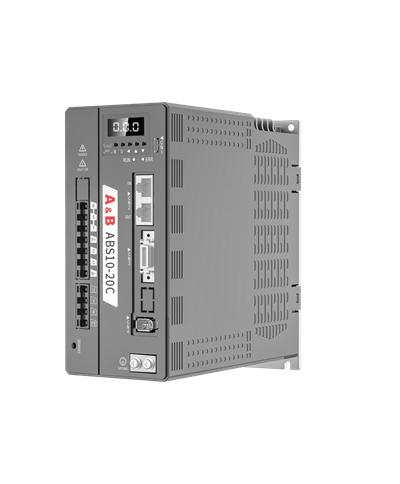

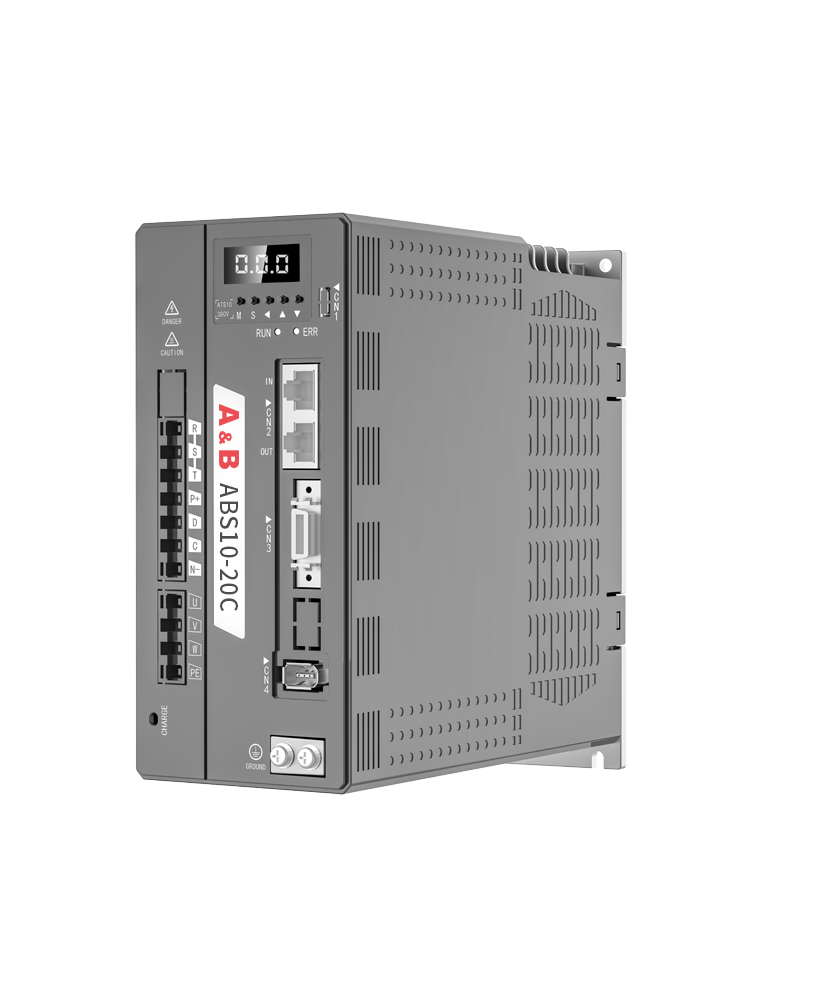

  ABS10 Series   AC servo drive
  Model  Power ( KW )
  Output current (A)  maximum output current ( A )

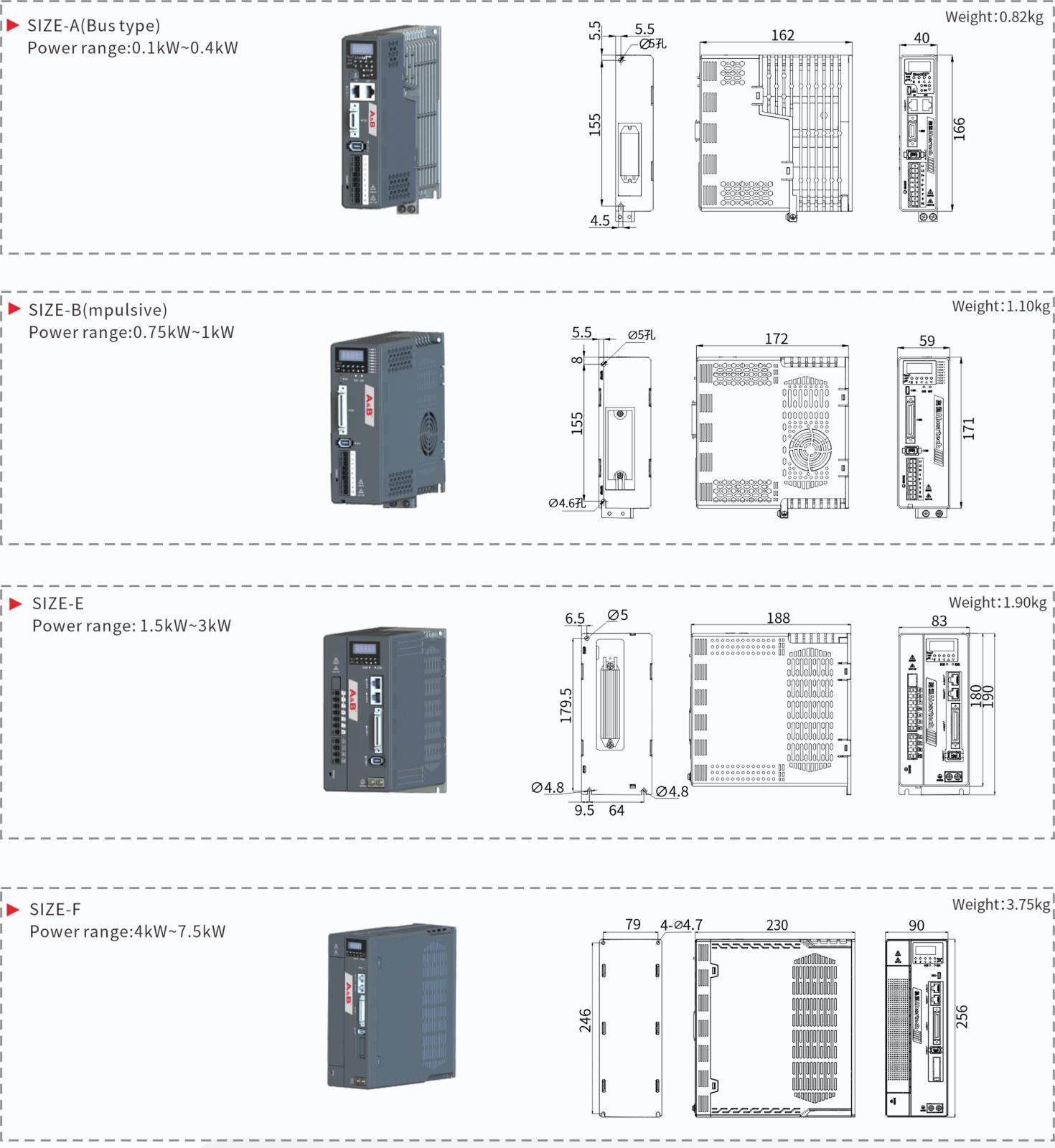

  Size  Input power suppiym  ( V )
  ABS10-02A  0.2  1.6  5.8  SIZE-A  SIZE-A
  ABS10-04A  0.4  2.8  10.1  SIZE-A  Single phase AC220
  ABS10-07A  0.75  5.5  16.9  SIZE-B  phase AC220
  ABS10-10A  1.0  7.6  23.0  SIZE-B  Single phase AC220
  ABS10-15A  1.5  11.6  32.0  SIZE-E  Single phase AC220
  ABS10-15B
  1.5  11.6  32.0  SIZE-E  Single phase AC220
  ABS10-15C  1.5  5.4  14.0  SIZE-F  Single phase AC380
   ABS10-22C  2.2  8.4   20.0  SIZE-F  Single phase AC380



  ABS12 Series   AC servo drive

Model Power ( KW ) Output current(A) maximum output current ( A )Size Input power suppiym  ( V )
ABS12-02A0.21.6
5.8 SIZE-A Single phase AC220
ABS12-04A0.42.810.1 SIZE-A Single phase AC220
ABS12-07A0.755.516.9SIZE-B Single phase AC220
ABS12-10A
1.07.623.0SIZE-B Single phase AC220
ABS12-15A1.511.632.0SIZE-B Single phase AC220
ABS12-15B1.511.632.0SIZE-E Single phase AC220
ABS12-20B2.018.045SIZE-F Single phase AC220
ABS12-25B2.522.055SIZE-F Single phase AC220
ABS12-20C2.08.420.0SIZE-E Single phase AC380
ABS12-30C3.011.929.7SIZE-E Single phase AC380

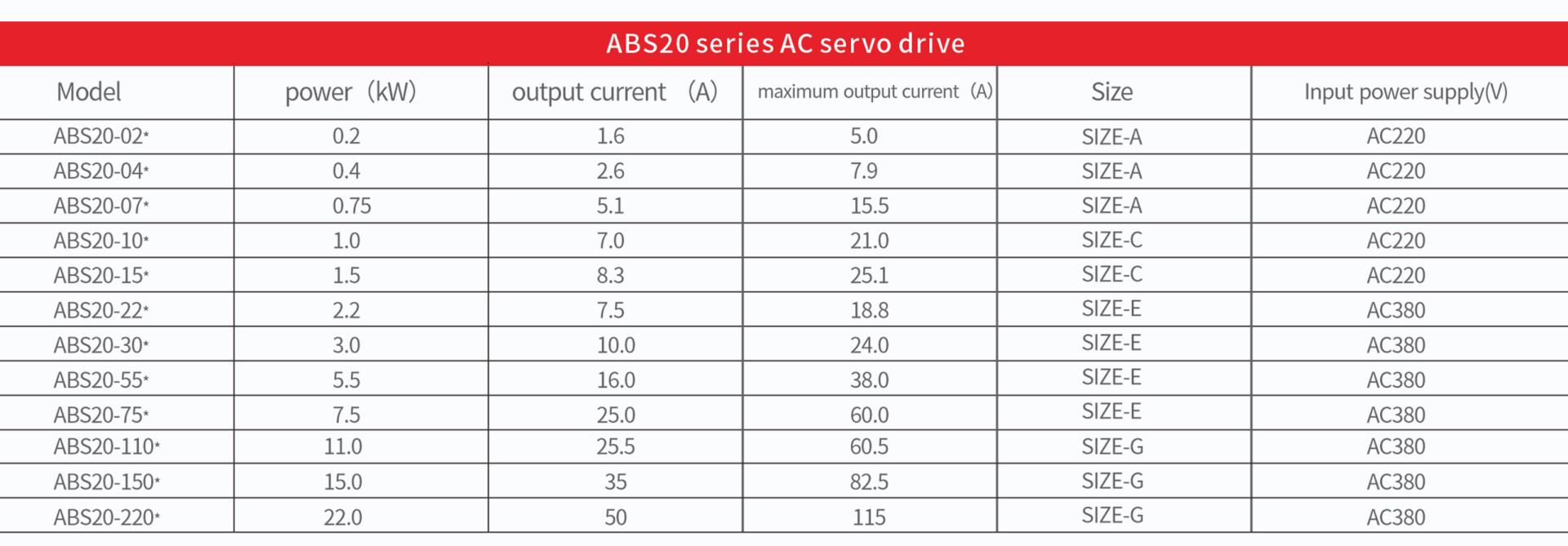

 ABS20 Series   AC servo drive

ModelPower ( KW ) Output current(A) maximum output current ( A )SizeInput power suppiym  ( V )
ABS20-020.21.65.0SIZE-AAC220
ABS20-040.42.67.9SIZE-AAC220
ABS20-070.755.115.5SIZE-AAC220
ABS20-101.07.021.0SIZE-CAC220
ABS20-151.58.325.1SIZE-CAC220
ABS20-222.27.518.8SIZE-EAC380
ABS20-303.01024.0SIZE-EAC220
ABS20-555.516.038.0SIZE-EAC220
ABS20-757.525.060.0SIZE-EAC220
ABS20-11011.025.560.5SIZE-GAC220
ABS20-15015.03582.5SIZE-GAC220
ABS20-22022.050115SIZE-GAC220
